Revitalizing Riverbank Systems through a Sponge City Framework and Nature-Based Solutions toward Sustainable and Resilient Communities in Charghat, Rajshahi¶

Project Banner

Date Location Framework


📝 Overview¶

This project addresses the critical challenge of riverbank erosion and urban flooding in Charghat, Rajshahi, along the dynamic Padma River. Traditional "grey" infrastructure (concrete embankments) has proven costly and prone to failure in this region.

Our study proposes a paradigm shift towards a Sponge City Framework, integrating Nature-Based Solutions (NBS) such as vetiver grass, bio-swales, and live crib walls[cite: 1]. By redesigning the riverbank interface, we aim to enhance ecological resilience, manage stormwater naturally, and create sustainable community spaces that work with the river, not against it.

🛠️ Tools & Technologies¶

GIS Design Visualization


⚙️ Methodology¶

Step Description

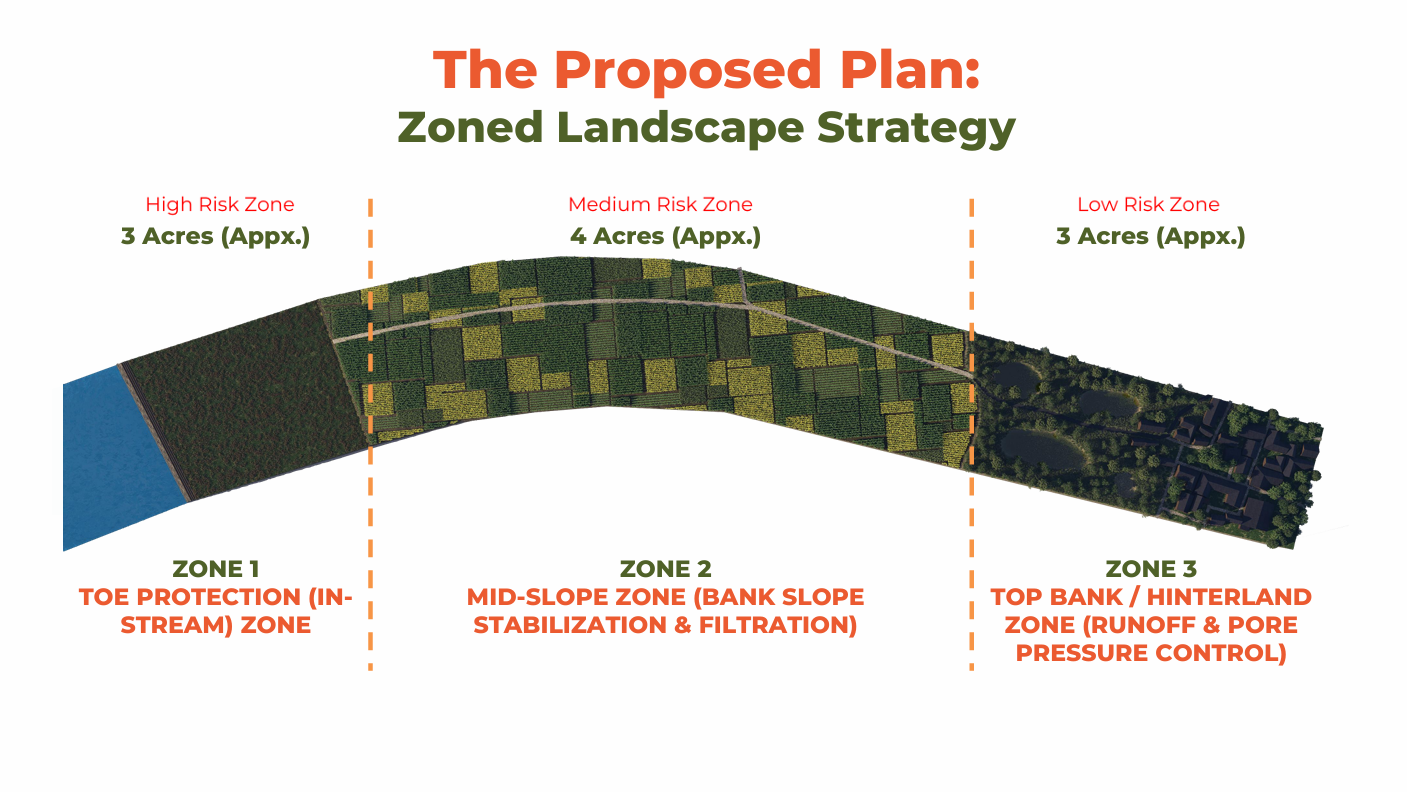

1. Site Analysis Mapped the "Toe," "Mid-Slope," and "Top" zones of the Charghat riverbank to identify erosion hotspots.
2. Risk Zonation Classified areas into High, Medium, and Low risk zones based on hydrological data and slope stability.
3. Design Intervention Selected specific NBS elements for each zone: Wire Gabions for toe protection, Live Crib Walls for slopes, and Bio-swales for the top.
4. Cost Estimation Conducted a comparative cost analysis between NBS materials (bamboo, vetiver, local rock) and traditional concrete structures.

Documentary ⬇️¶

In [19]:

Out[19]:

Presentation Slides ⬇️¶

In [24]:

Total Pages: 39
--- Page 1 ---
No description has been provided for this image
--- Page 2 ---
No description has been provided for this image
--- Page 3 ---
No description has been provided for this image
--- Page 4 ---
No description has been provided for this image
--- Page 5 ---
No description has been provided for this image
--- Page 6 ---
No description has been provided for this image
--- Page 7 ---
No description has been provided for this image
--- Page 8 ---
No description has been provided for this image
--- Page 9 ---
No description has been provided for this image
--- Page 10 ---
No description has been provided for this image
--- Page 11 ---
No description has been provided for this image
--- Page 12 ---
No description has been provided for this image
--- Page 13 ---
No description has been provided for this image
--- Page 14 ---
No description has been provided for this image
--- Page 15 ---
No description has been provided for this image
--- Page 16 ---
No description has been provided for this image
--- Page 17 ---
No description has been provided for this image
--- Page 18 ---
No description has been provided for this image
--- Page 19 ---
No description has been provided for this image
--- Page 20 ---
No description has been provided for this image
--- Page 21 ---
No description has been provided for this image
--- Page 22 ---
No description has been provided for this image
--- Page 23 ---
No description has been provided for this image
--- Page 24 ---
No description has been provided for this image
--- Page 25 ---
No description has been provided for this image
--- Page 26 ---
No description has been provided for this image
--- Page 27 ---
No description has been provided for this image
--- Page 28 ---
No description has been provided for this image
--- Page 29 ---
No description has been provided for this image
--- Page 30 ---
No description has been provided for this image
--- Page 31 ---
No description has been provided for this image
--- Page 32 ---
No description has been provided for this image
--- Page 33 ---
No description has been provided for this image
--- Page 34 ---
No description has been provided for this image
--- Page 35 ---
No description has been provided for this image
--- Page 36 ---
No description has been provided for this image
--- Page 37 ---
No description has been provided for this image
--- Page 38 ---
No description has been provided for this image
--- Page 39 ---
No description has been provided for this image

Full 3D ⬇️¶

In [20]:

Out[20]:

📊 Results & Insights¶

  • 🌍 Cost Effectiveness: Our analysis proved that concrete structures cost 2-5 times more than Nature-Based Solutions and are more susceptible to failure in dynamic river environments.
  • 📈 Zonal Defense:
    • Toe Zone: Protected with wire gabions ($14,000-18,000/m) and coir logs.
    • Slope Zone: Stabilized with vetiver grass ($400-600/m) and live crib walls.
    • Urban Interface: Managed with permeable pavements ($1,200/m²) and rain gardens.
  • 🧭 Resilience: The proposed framework creates a flexible buffer that absorbs floodwaters rather than resisting them, ensuring long-term community safety.

🗂️ Data Sources¶

Source Description Link
Field Survey Physical feature survey of Charghat Upazila N/A
Water Board Hydrological data for the Padma River BWDB
OpenStreetMap Base map data OSM

🔖 Tags¶

Landscape Planning Sponge City Nature-Based Solutions Riverbank Erosion Urban Resilience Bio-engineering Sustainable Design Rajshahim
